Wind farm
Winnberg

First serial tower with 199 meter hub height for efficient wind energy.

Max Bögl is continuously investing in the expansion of its energy infrastructure at Sengenthal headquarters. The wind turbine near Winnberg adds another source of power to the existing energy cell. In the future, approximately two-thirds of the site’s energy needs will be met by its own facilities.

At the same time, the completion of the wind turbine—with a hub height of 199 meters—marks a technological milestone in hybrid tower technology.

Project overview

Turbine: Vestas
Type: V172 - 7.2 EnVentus
Capacity: 7.2 MW
Rotor diameter: 172m
Electricity production: ca. 17.000 MWh/a
Blade length: 84,3 m
Turbine height: 285 m above sea level
Concrete tower height: 108 m
Number steel sections: 4
Cranes: Liebherr LTM 1750 and Tadano (DEMAG)

Turnkey partner for energy projects

Almost everything from a single source

In Winnberg, Max Bögl is not only responsible for the foundation and hybrid tower, but also serves as the project developer, investor, and operator. We handled the following tasks ourselves in this project:

Project development
Access roads, civil engineering, and cable routing
Foundation works
Concrete tower production and assembly
Steel tower production
Commercial and technical operations management

Our project partner, Vestas, is responsible for the turbine components as well as the final installation starting at the height of the transition piece..

The wind turbine is scheduled to begin operations in the fall of 2026. And it will set a new world record for height: as the tallest series-produced onshore wind turbine! The energy cell at the Sengenthal headquarters, currently equipped with its own photovoltaic systems, a combined heat and power plant, and a battery storage facility, will become even more energy self-sufficient thanks to the wind turbine's direct power supply.

Foundation works

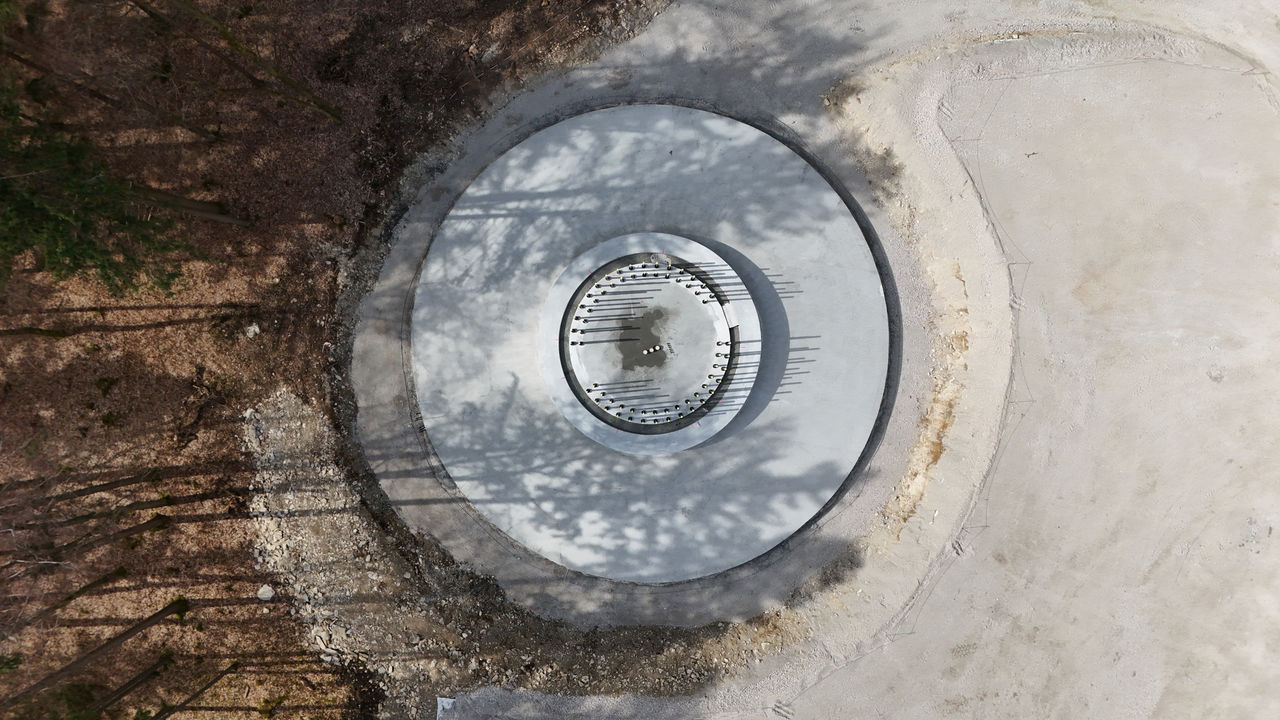

The foundation work has already been completed. The foundation is based on a proven, standardized construction concept using in-situ concrete. It has a diameter of 26.50 meters and a height of 3.40 meters. The location Winnberg is characterized by karstified limestone. To ensure sufficient bearing capacity, the subsoil was reinforced with bored piles.

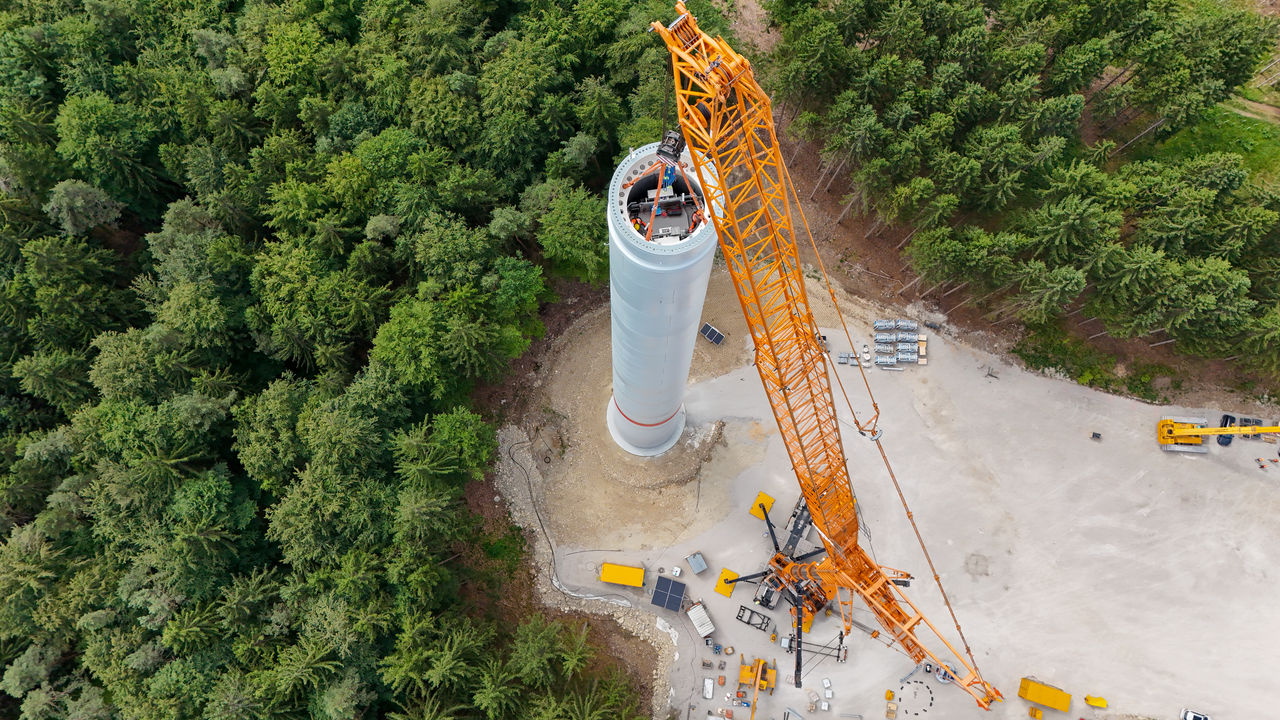

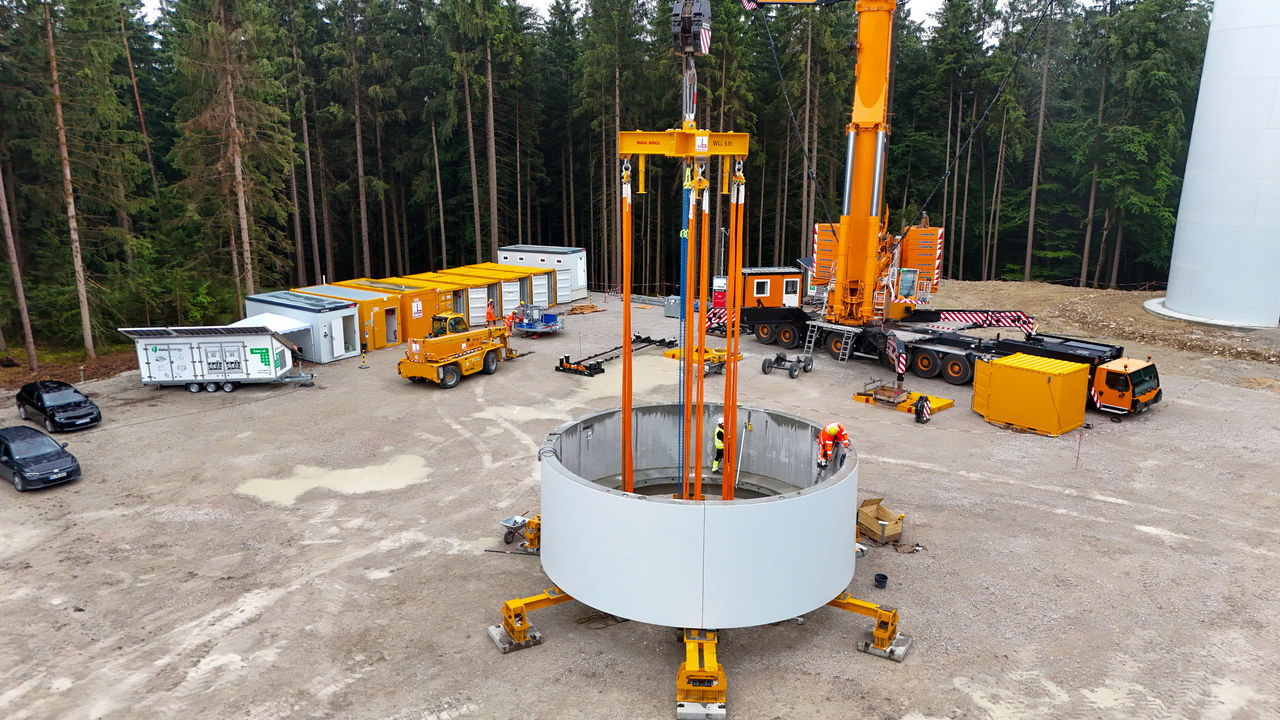

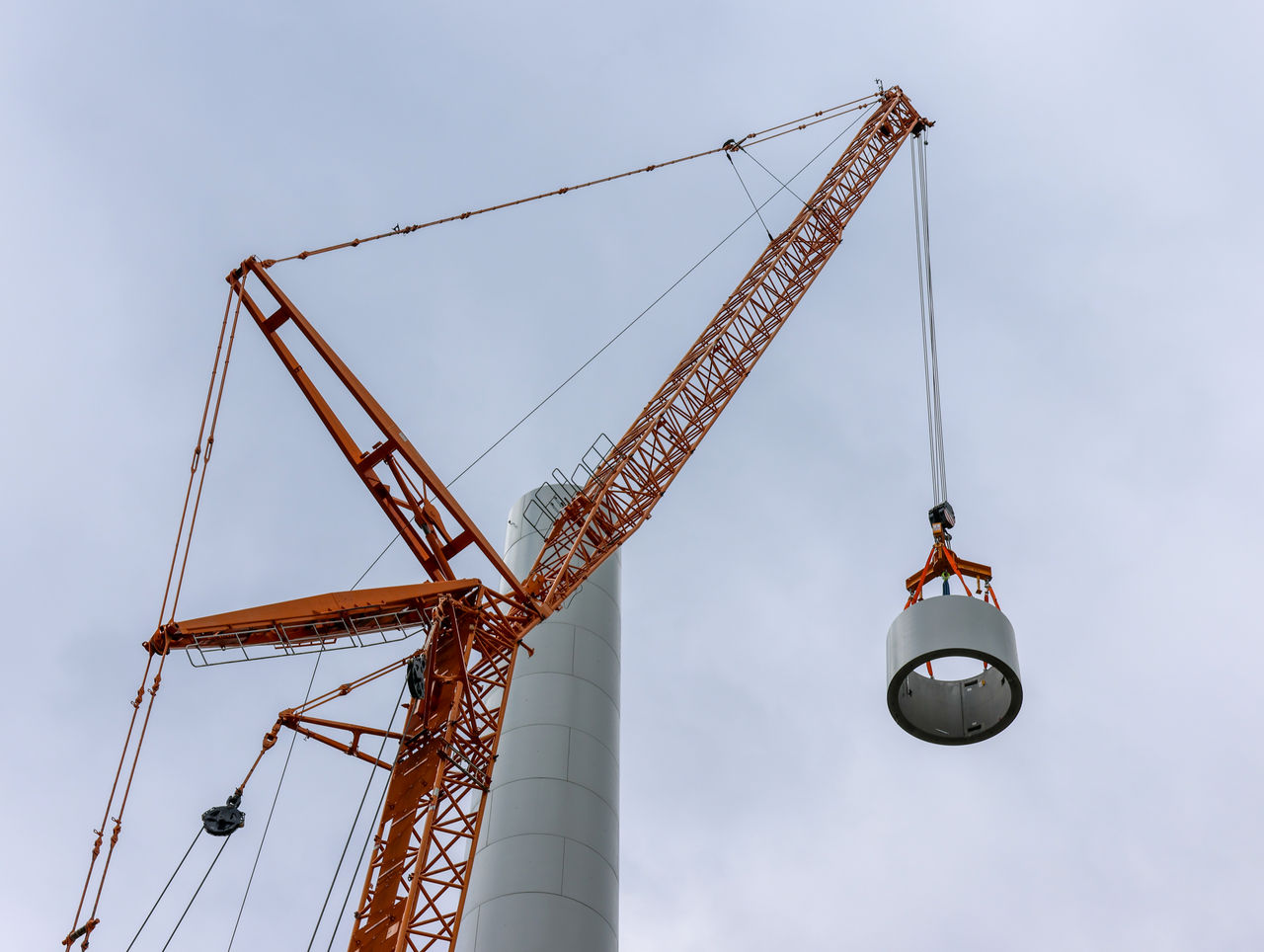

Concrete tower assembly

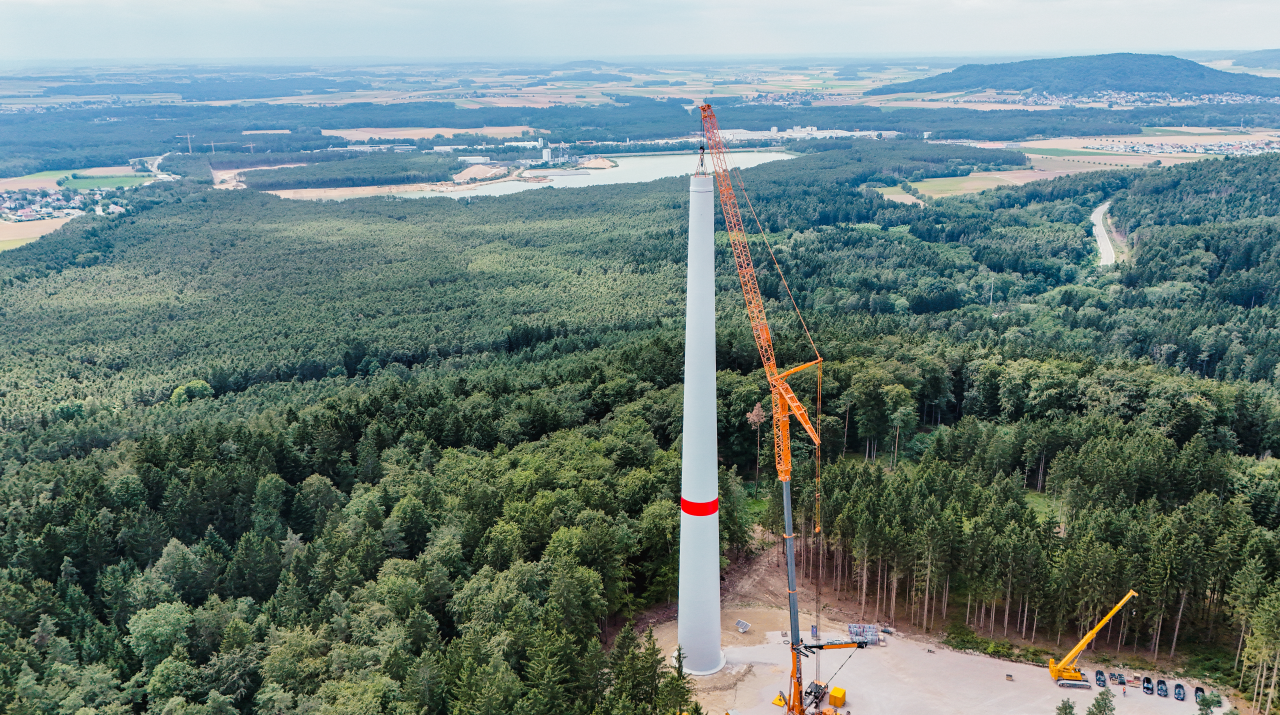

The concrete tower has reached a height of 108 meters and forms the foundation for the future hub height of 199 meters.

Transportation of turbine components

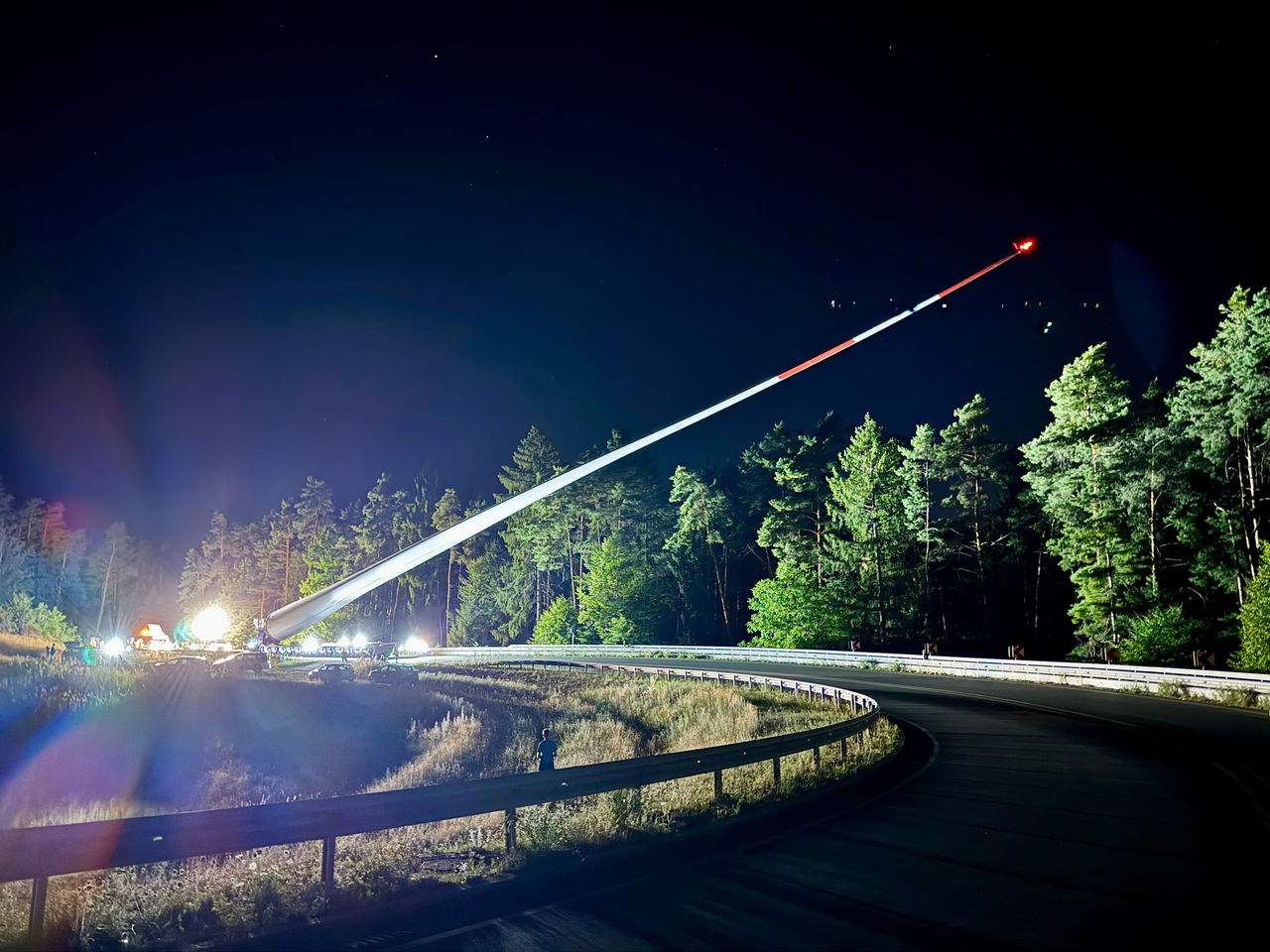

The delivery of the large components is a separate project within the project. The rotor blades, which are 84 meters long, pose a particular challenge: To transport them, the curve radii, turning ranges, embankments, and obstacles along the route must be precisely checked and prepared.

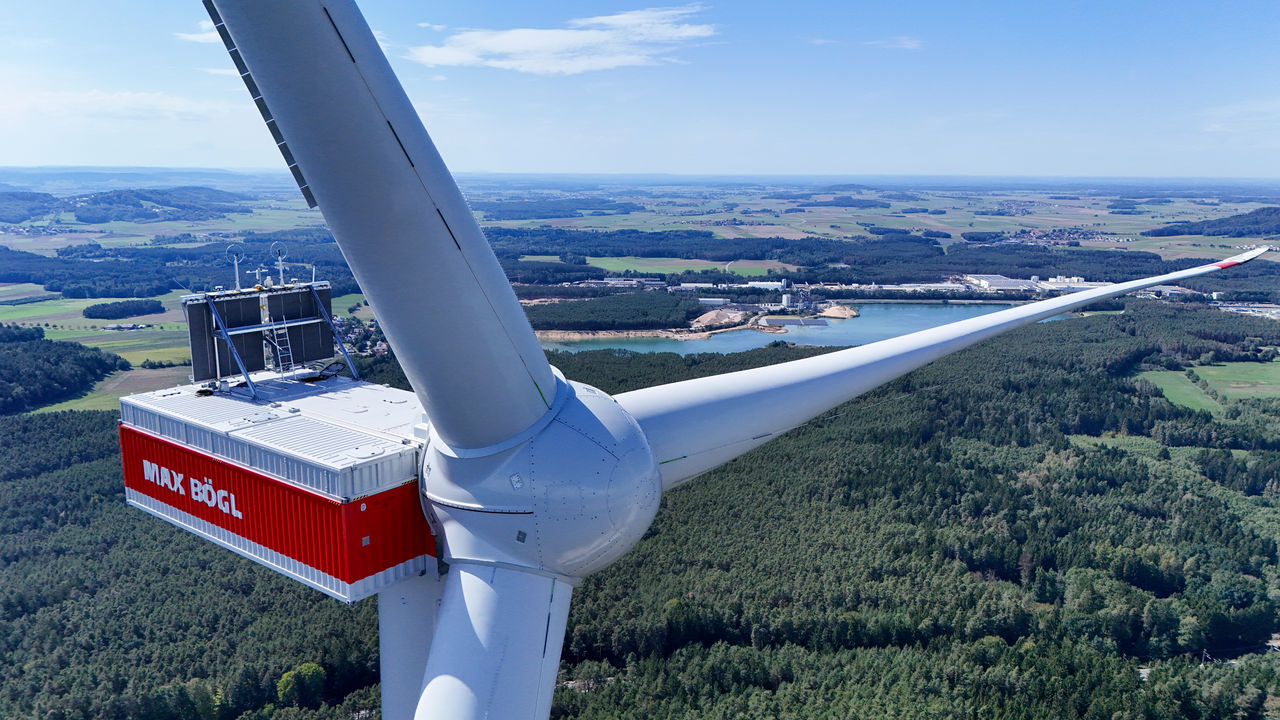

Turbine installation

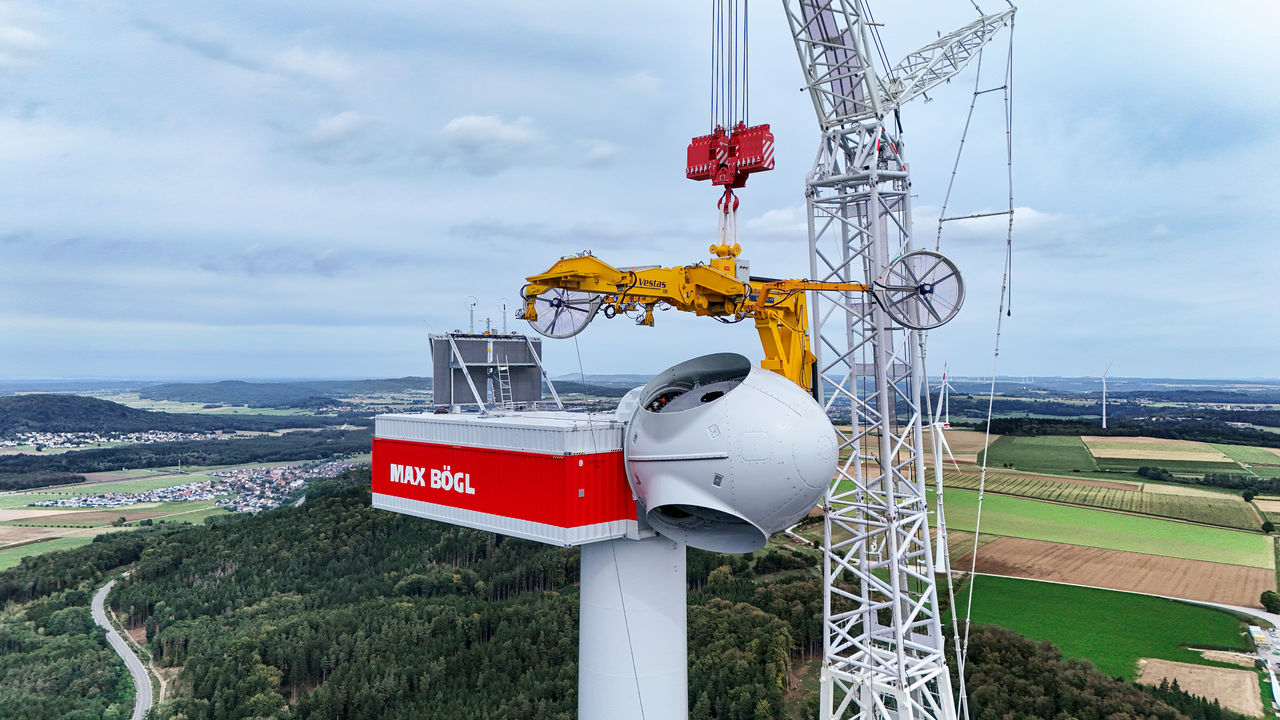

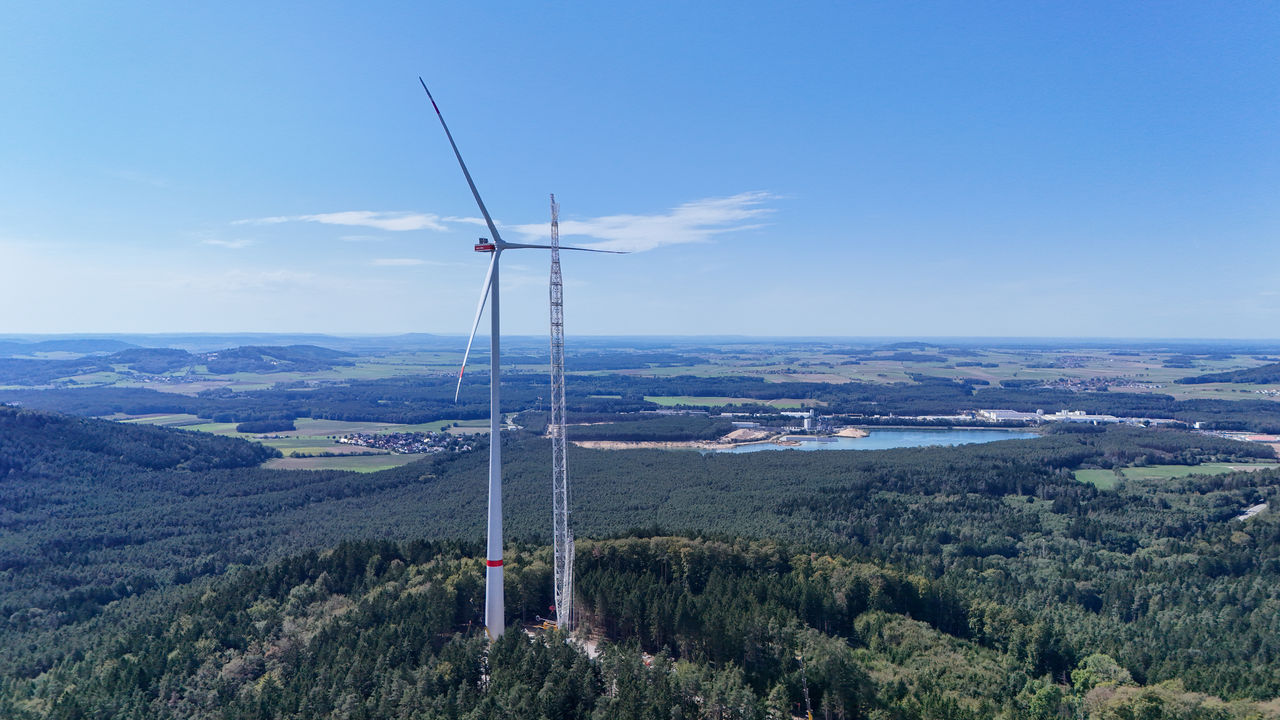

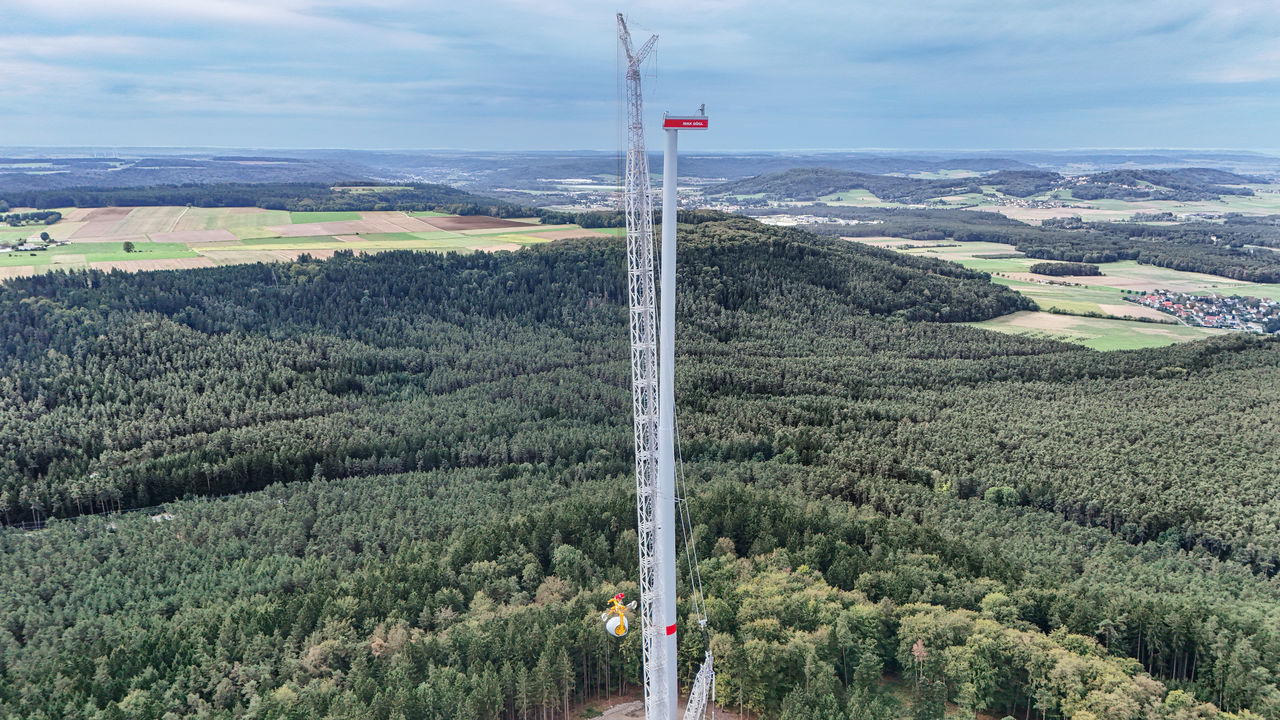

Installing the turbine components is particularly challenging. In addition to a special crane—which is being used at these heights for the very first time—wind speeds must also be taken into account when working at a height of 200 m.
